工作波長：1525nm-1535nm； 調諧范圍：10nm； drop端3dB帶寬：0.17nm±0.02nm；out端3dB帶寬：0.07nm±0.02nm； 透射端口損耗：＜0.9dB； 反射端口損耗：＜1.8dB； 光纖接頭：FC/APC； 操作溫度：0-45℃；最大輸入功率：500mW
?因產品升級或技術原因,產品配圖可能有出入,具體請咨詢客服!
| 貨號 : A80150444 | |
| 庫存 : 請咨詢客服 | |
| 貨期 : 請咨詢客服 | |
| 點右側在線咨詢 | |
濾波器的核心部件是光折射率成周期性變化的光纖布拉格光柵。當一束廣譜的光束被傳播到光纖布拉格光柵的時候，光折射率被改變以后的每一小段光纖就只會反射一種特定波長的光波，這個波長稱為布拉格波長，而其它波長的光波都會被傳播。應變的改變會同時影響光纖布拉格光柵有效的光折射率 以及光柵周期 ，因此可以改變光柵反射光波的波長。
在這種裝置中，布拉格波長可以通過簡單地用細螺紋螺釘拉伸光柵來調諧達到調諧波長的目的。
技術參數
參數 | |
可選波長 | 1525nm-1535nm 1535nm-1545nm 1545nm-1555nm 1555nm-1565nm |
調諧范圍 | SMF28e : 10nm；保偏光纖 : 5nm |
3dB帶寬 | 0.17nm±0.02nm |
光纖接頭 | FC/APC or FC/PC ; SC/APC or SC/PC or patch cord |
操作溫度 | 0-45℃ |
封裝尺寸 | H : 48mm；L : 125mm + 10mm(Connectors)； W : 105mm |
重量 | 450g |
光譜分析

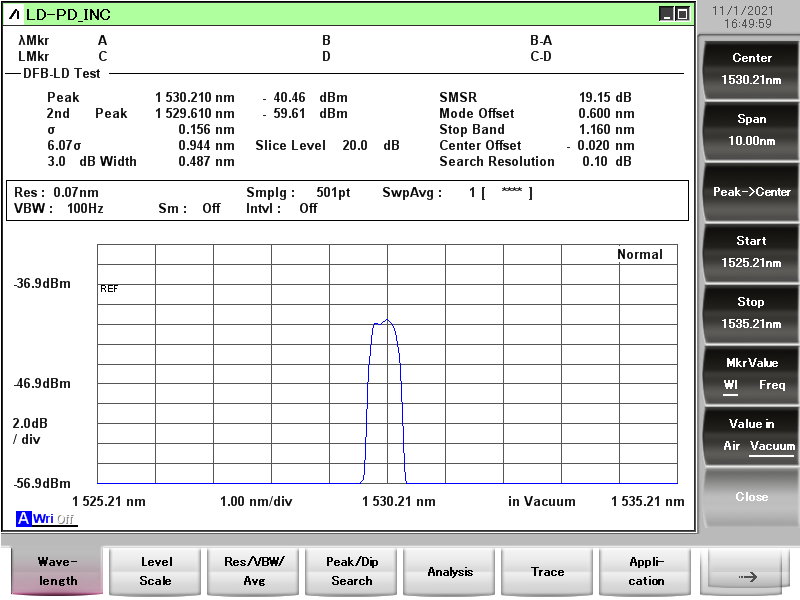

1，調節旋鈕得到的測試光譜圖（輸出為Drop端）1525nm-1535nm

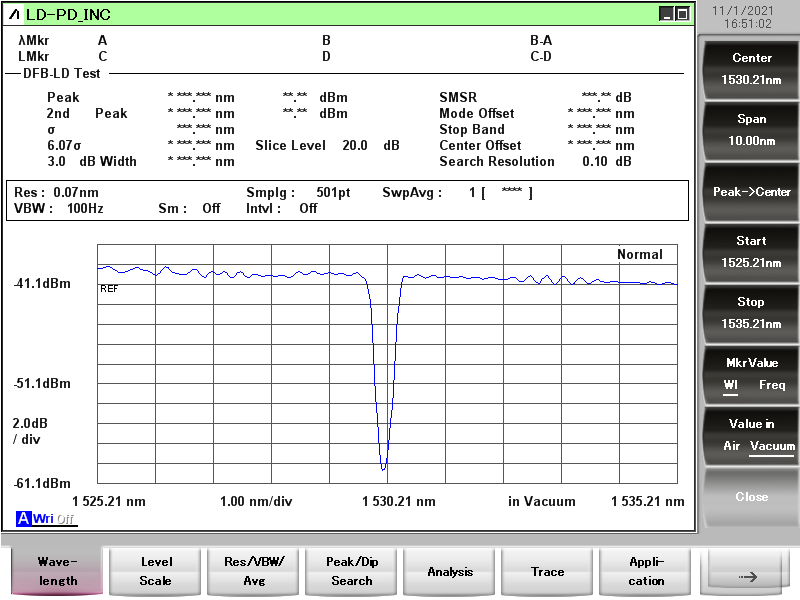

2,旋鈕在同一位置處測得的光譜圖
（Drop）
（Out）
操作步驟及注意事項
操作步驟：
1、最左邊端口為輸入端口，連接臺式光源
2、Drop端為反射輸出端口，Out端為透射式輸出端，連接光譜儀，
3、通過旋轉濾波器上面的旋鈕來調節應力，從而改變波長。
注意事項：
1、如果感覺螺絲旋鈕不順暢或聽到擦傷噪音，請停止旋轉。
2、請避免拆下調整螺絲，不要試圖將任何東西(即螺絲刀)穿過螺絲的螺紋孔。
3、不要用任何其他螺絲釘更換原來的螺絲，千萬不要把設備加熱到50攝氏度以上。

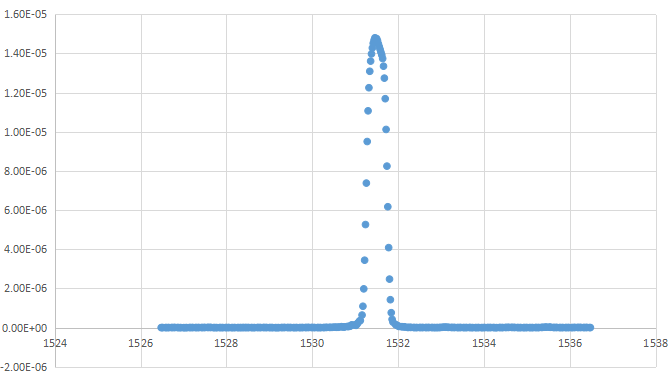

實驗室測試原始數據
| Center Wavelength 中心波長 | 1531.48 | nm |
| Span Wavelength 跨度波長 | 10 | nm |
| Start Wavelength | 1526.48 | nm |
| Stop Wavelength | 1536.48 | nm |
| Value In Air/Vacuum | Vacuum | |
| Optical Attenuater 光學衰減器 | Off | |
| Resolution 分辨率 | 0.07 | nm |
| Actual Resolution 實際分辨率 | 0.07 | nm |
| VBW | 200 | Hz |
| Point Average | Off | |
| Sweep Average 掃描平均值 | 1 | |
| Smooth | Off | |
| Sampling Points | 501 | pt |
| Trace Type 跟蹤類型 | Write | |
| Trace Storage Mode 跟蹤存儲模式 | Off | |
| Trace Calculate Trace 1 | - | |
| Trace Calculate Trace 2 | - | |
| Dynamic Range 動態范圍 | Normal | |
| Ext-Trigger | Off | |
| Interval Time 間隔時間 | Off | |
| MM Mode | Off | |
| Trace | I | |
| Start | 1526.48 | nm |
| Stop | 1536.48 | nm |
| 1526.48 | -5.84E-10 | |
| 1526.5 | 2.28E-09 | |
| 1526.52 | 1.35E-09 | |
| 1526.54 | 3.13E-09 | |
| 1526.56 | -1.20E-09 | |
| 1526.58 | 1.04E-09 | |
| 1526.6 | 1.91E-09 | |
| 1526.62 | -1.87E-09 | |
| 1526.64 | 6.99E-10 | |
| 1526.66 | 2.75E-09 | |
| 1526.68 | 6.09E-10 | |
| 1526.7 | 1.56E-09 | |
| 1526.72 | 3.54E-09 | |
| 1526.74 | 3.66E-09 | |
| 1526.76 | 7.40E-09 | |
| 1526.78 | 4.97E-09 | |
| 1526.8 | 6.80E-09 | |
| 1526.82 | 2.90E-09 | |
| 1526.84 | 1.33E-09 | |
| 1526.86 | 3.93E-09 | |
| 1526.88 | 1.26E-09 | |
| 1526.9 | 2.03E-09 | |
| 1526.92 | -1.25E-09 | |
| 1526.94 | 1.30E-10 | |
| 1526.96 | 1.10E-09 | |
| 1526.98 | 9.74E-10 | |
| 1527 | -1.69E-09 | |
| 1527.02 | -4.89E-09 | |
| 1527.04 | 3.27E-09 | |
| 1527.06 | 1.86E-09 | |
| 1527.08 | -3.30E-09 | |
| 1527.1 | 4.92E-11 | |
| 1527.12 | 1.46E-09 | |
| 1527.14 | 5.17E-09 | |
| 1527.16 | 7.77E-10 | |
| 1527.18 | 4.51E-09 | |
| 1527.2 | 5.33E-09 | |
| 1527.22 | 2.38E-09 | |
| 1527.24 | -8.63E-10 | |
| 1527.26 | 3.96E-09 | |
| 1527.28 | 2.22E-09 | |
| 1527.3 | 2.37E-09 | |
| 1527.32 | -1.41E-10 | |
| 1527.34 | 1.86E-09 | |
| 1527.36 | 4.54E-09 | |
| 1527.38 | 4.00E-09 | |
| 1527.4 | 2.68E-09 | |
| 1527.42 | 3.20E-09 | |
| 1527.44 | 3.36E-09 | |
| 1527.46 | 4.32E-09 | |
| 1527.48 | 5.41E-09 | |
| 1527.5 | 5.80E-09 | |
| 1527.52 | 3.57E-09 | |
| 1527.54 | 8.32E-09 | |
| 1527.56 | 7.76E-09 | |
| 1527.58 | 9.17E-09 | |
| 1527.6 | 3.68E-09 | |
| 1527.62 | 7.31E-09 | |
| 1527.64 | 8.52E-09 | |
| 1527.66 | 4.05E-09 | |
| 1527.68 | -3.24E-10 | |
| 1527.7 | -3.04E-09 | |
| 1527.72 | 3.82E-09 | |
| 1527.74 | -1.20E-09 | |
| 1527.76 | 1.64E-11 | |
| 1527.78 | -1.29E-09 | |
| 1527.8 | -1.02E-09 | |
| 1527.82 | -1.14E-09 | |
| 1527.84 | 1.82E-09 | |
| 1527.86 | 2.77E-09 | |
| 1527.88 | -1.36E-09 | |
| 1527.9 | 2.02E-09 | |
| 1527.92 | 3.90E-10 | |
| 1527.94 | 4.71E-10 | |
| 1527.96 | -3.86E-10 | |
| 1527.98 | 2.76E-09 | |
| 1528 | 7.47E-10 | |
| 1528.02 | 3.21E-09 | |
| 1528.04 | 2.99E-09 | |
| 1528.06 | 2.26E-09 | |
| 1528.08 | 5.07E-09 | |
| 1528.1 | 5.32E-11 | |
| 1528.12 | -3.02E-09 | |
| 1528.14 | 3.24E-09 | |
| 1528.16 | 2.98E-10 | |
| 1528.18 | -3.15E-10 | |
| 1528.2 | 2.93E-09 | |
| 1528.22 | -8.18E-10 | |
| 1528.24 | -3.69E-10 | |
| 1528.26 | -1.83E-10 | |
| 1528.28 | 1.78E-09 | |
| 1528.3 | 1.05E-09 | |
| 1528.32 | 1.19E-09 | |
| 1528.34 | 1.02E-09 | |
| 1528.36 | 3.57E-09 | |
| 1528.38 | 1.74E-09 | |
| 1528.4 | 4.57E-09 | |
| 1528.42 | 2.07E-09 | |
| 1528.44 | 5.98E-10 | |
| 1528.46 | 4.60E-09 | |
| 1528.48 | 1.55E-09 | |
| 1528.5 | 1.15E-09 | |
| 1528.52 | 3.24E-09 | |
| 1528.54 | -1.28E-10 | |
| 1528.56 | 2.34E-09 | |
| 1528.58 | 2.44E-09 | |
| 1528.6 | 7.45E-11 | |
| 1528.62 | 2.46E-09 | |
| 1528.64 | -3.64E-10 | |
| 1528.66 | 3.61E-10 | |
| 1528.68 | 7.01E-10 | |
| 1528.7 | 3.40E-09 | |
| 1528.72 | 2.85E-09 | |
| 1528.74 | 5.81E-09 | |
| 1528.76 | 3.93E-09 | |
| 1528.78 | 3.98E-09 | |
| 1528.8 | 1.38E-09 | |
| 1528.82 | 4.27E-09 | |
| 1528.84 | 1.89E-09 | |
| 1528.86 | 4.80E-09 | |
| 1528.88 | 4.74E-09 | |
| 1528.9 | 3.10E-10 | |
| 1528.92 | 3.30E-09 | |
| 1528.94 | 2.99E-09 | |
| 1528.96 | 1.79E-09 | |
| 1528.98 | 3.06E-09 | |
| 1529 | 4.37E-10 | |
| 1529.02 | 3.14E-09 | |
| 1529.04 | 1.81E-09 | |
| 1529.06 | 5.81E-09 | |
| 1529.08 | -3.91E-09 | |
| 1529.1 | -1.29E-09 | |
| 1529.12 | 3.53E-09 | |
| 1529.14 | -1.47E-10 | |
| 1529.16 | -3.19E-09 | |
| 1529.18 | 1.24E-09 | |
| 1529.2 | -4.54E-10 | |
| 1529.22 | -1.17E-09 | |
| 1529.24 | 2.65E-09 | |
| 1529.26 | -1.15E-09 | |
| 1529.28 | 3.01E-09 | |
| 1529.3 | 3.38E-09 | |
| 1529.32 | 1.93E-09 | |
| 1529.34 | 3.20E-09 | |
| 1529.36 | 7.49E-09 | |
| 1529.38 | 3.17E-09 | |
| 1529.4 | 5.05E-10 | |
| 1529.42 | 3.05E-09 | |
| 1529.44 | 4.87E-09 | |
| 1529.46 | 4.86E-09 | |
| 1529.48 | 6.03E-10 | |
| 1529.5 | 5.12E-09 | |
| 1529.52 | 5.11E-09 | |
| 1529.54 | 4.18E-09 | |
| 1529.56 | 2.48E-10 | |
| 1529.58 | 2.09E-10 | |
| 1529.6 | -4.62E-10 | |
| 1529.62 | -1.88E-10 | |
| 1529.64 | 3.53E-09 | |
| 1529.66 | 9.46E-10 | |
| 1529.68 | 2.52E-09 | |
| 1529.7 | -1.36E-09 | |
| 1529.72 | 3.35E-09 | |
| 1529.74 | 2.00E-09 | |
| 1529.76 | 3.02E-09 | |
| 1529.78 | 3.00E-09 | |
| 1529.8 | 4.74E-10 | |
| 1529.82 | -1.28E-10 | |
| 1529.84 | 5.05E-09 | |
| 1529.86 | 3.10E-09 | |
| 1529.88 | 7.63E-09 | |
| 1529.9 | 8.40E-09 | |
| 1529.92 | 6.64E-09 | |
| 1529.94 | 8.26E-09 | |
| 1529.96 | 5.27E-09 | |
| 1529.98 | 4.43E-09 | |
| 1530 | 6.51E-09 | |
| 1530.02 | -2.64E-10 | |
| 1530.04 | 4.52E-09 | |
| 1530.06 | 1.26E-09 | |
| 1530.08 | 1.68E-09 | |
| 1530.1 | 5.66E-09 | |
| 1530.12 | 1.21E-09 | |
| 1530.14 | 5.16E-09 | |
| 1530.16 | 1.44E-09 | |
| 1530.18 | 7.16E-10 | |
| 1530.2 | 8.02E-10 | |
| 1530.22 | 4.17E-09 | |
| 1530.24 | 2.67E-09 | |
| 1530.26 | 3.20E-09 | |
| 1530.28 | 4.32E-09 | |
| 1530.3 | 1.60E-09 | |
| 1530.32 | 9.86E-09 | |
| 1530.34 | 1.17E-08 | |
| 1530.36 | 1.31E-08 | |
| 1530.38 | 1.19E-08 | |
| 1530.4 | 1.24E-08 | |
| 1530.42 | 1.15E-08 | |
| 1530.44 | 1.01E-08 | |
| 1530.46 | 1.16E-08 | |
| 1530.48 | 1.17E-08 | |
| 1530.5 | 2.37E-08 | |
| 1530.52 | 2.14E-08 | |
| 1530.54 | 2.21E-08 | |
| 1530.56 | 1.59E-08 | |
| 1530.58 | 1.97E-08 | |
| 1530.6 | 1.67E-08 | |
| 1530.62 | 2.75E-08 | |
| 1530.64 | 3.88E-08 | |
| 1530.66 | 4.56E-08 | |
| 1530.68 | 4.85E-08 | |
| 1530.7 | 3.57E-08 | |
| 1530.72 | 2.43E-08 | |
| 1530.74 | 2.86E-08 | |
| 1530.76 | 4.08E-08 | |
| 1530.78 | 5.24E-08 | |
| 1530.8 | 5.66E-08 | |
| 1530.82 | 6.00E-08 | |
| 1530.84 | 5.10E-08 | |
| 1530.86 | 5.47E-08 | |
| 1530.88 | 6.97E-08 | |
| 1530.9 | 1.04E-07 | |
| 1530.92 | 1.41E-07 | |
| 1530.94 | 1.60E-07 | |
| 1530.96 | 1.58E-07 | |
| 1530.98 | 1.34E-07 | |
| 1531 | 1.13E-07 | |
| 1531.02 | 1.15E-07 | |
| 1531.04 | 1.67E-07 | |
| 1531.06 | 2.34E-07 | |
| 1531.08 | 2.98E-07 | |
| 1531.1 | 3.37E-07 | |
| 1531.12 | 3.61E-07 | |
| 1531.14 | 4.25E-07 | |
| 1531.16 | 6.41E-07 | |
| 1531.18 | 1.09E-06 | |
| 1531.2 | 1.98E-06 | |
| 1531.22 | 3.44E-06 | |
| 1531.24 | 5.26E-06 | |
| 1531.26 | 7.38E-06 | |
| 1531.28 | 9.50E-06 | |
| 1531.3 | 1.11E-05 | |
| 1531.32 | 1.23E-05 | |
| 1531.34 | 1.31E-05 | |
| 1531.36 | 1.36E-05 | |
| 1531.38 | 1.40E-05 | |
| 1531.4 | 1.43E-05 | |
| 1531.42 | 1.45E-05 | |
| 1531.44 | 1.47E-05 | |
| 1531.46 | 1.48E-05 | |
| 1531.48 | 1.48E-05 | |
| 1531.5 | 1.48E-05 | |
| 1531.52 | 1.47E-05 | |
| 1531.54 | 1.45E-05 | |
| 1531.56 | 1.44E-05 | |
| 1531.58 | 1.42E-05 | |
| 1531.6 | 1.41E-05 | |
| 1531.62 | 1.39E-05 | |
| 1531.64 | 1.37E-05 | |
| 1531.66 | 1.34E-05 | |
| 1531.68 | 1.27E-05 | |
| 1531.7 | 1.17E-05 | |
| 1531.72 | 1.01E-05 | |
| 1531.74 | 8.25E-06 | |
| 1531.76 | 6.17E-06 | |
| 1531.78 | 4.09E-06 | |
| 1531.8 | 2.48E-06 | |
| 1531.82 | 1.43E-06 | |
| 1531.84 | 7.62E-07 | |
| 1531.86 | 4.24E-07 | |
| 1531.88 | 2.79E-07 | |
| 1531.9 | 1.98E-07 | |
| 1531.92 | 1.69E-07 | |
| 1531.94 | 1.55E-07 | |
| 1531.96 | 1.32E-07 | |
| 1531.98 | 1.03E-07 | |
| 1532 | 8.79E-08 | |
| 1532.02 | 5.80E-08 | |
| 1532.04 | 4.77E-08 | |
| 1532.06 | 4.68E-08 | |
| 1532.08 | 4.68E-08 | |
| 1532.1 | 4.48E-08 | |
| 1532.12 | 4.62E-08 | |
| 1532.14 | 4.26E-08 | |
| 1532.16 | 3.04E-08 | |
| 1532.18 | 2.49E-08 | |
| 1532.2 | 1.50E-08 | |
| 1532.22 | 9.54E-09 | |
| 1532.24 | 1.00E-08 | |
| 1532.26 | 7.13E-09 | |
| 1532.28 | 1.29E-08 | |
| 1532.3 | 1.05E-08 | |
| 1532.32 | 1.06E-08 | |
| 1532.34 | 8.82E-09 | |
| 1532.36 | 6.31E-09 | |
| 1532.38 | 2.71E-09 | |
| 1532.4 | 4.53E-09 | |
| 1532.42 | 1.70E-09 | |
| 1532.44 | 3.63E-09 | |
| 1532.46 | 5.39E-09 | |
| 1532.48 | 2.20E-09 | |
| 1532.5 | 3.78E-09 | |
| 1532.52 | 5.66E-09 | |
| 1532.54 | 5.82E-09 | |
| 1532.56 | 2.66E-09 | |
| 1532.58 | 6.59E-09 | |
| 1532.6 | 2.80E-09 | |
| 1532.62 | 1.49E-09 | |
| 1532.64 | 2.68E-09 | |
| 1532.66 | 4.88E-09 | |
| 1532.68 | 5.48E-09 | |
| 1532.7 | 3.97E-09 | |
| 1532.72 | 6.29E-09 | |
| 1532.74 | 3.49E-09 | |
| 1532.76 | 5.96E-11 | |
| 1532.78 | 3.78E-09 | |
| 1532.8 | 4.37E-09 | |
| 1532.82 | 3.34E-09 | |
| 1532.84 | 1.64E-09 | |
| 1532.86 | 6.36E-11 | |
| 1532.88 | 1.88E-09 | |
| 1532.9 | 2.76E-09 | |
| 1532.92 | 2.16E-09 | |
| 1532.94 | 6.52E-09 | |
| 1532.96 | 2.07E-09 | |
| 1532.98 | 9.78E-09 | |
| 1533 | 1.30E-08 | |
| 1533.02 | 1.33E-08 | |
| 1533.04 | 1.76E-08 | |
| 1533.06 | 2.66E-08 | |
| 1533.08 | 2.37E-08 | |
| 1533.1 | 2.01E-08 | |
| 1533.12 | 2.36E-08 | |
| 1533.14 | 2.03E-08 | |
| 1533.16 | 1.27E-08 | |
| 1533.18 | 1.46E-08 | |
| 1533.2 | 1.39E-08 | |
| 1533.22 | 6.61E-09 | |
| 1533.24 | 7.23E-09 | |
| 1533.26 | 8.23E-09 | |
| 1533.28 | 1.05E-08 | |
| 1533.3 | 4.94E-09 | |
| 1533.32 | 6.89E-09 | |
| 1533.34 | 1.13E-09 | |
| 1533.36 | 3.71E-09 | |
| 1533.38 | 2.67E-09 | |
| 1533.4 | 2.22E-09 | |
| 1533.42 | 6.04E-09 | |
| 1533.44 | 3.83E-09 | |
| 1533.46 | 5.95E-09 | |
| 1533.48 | 5.28E-09 | |
| 1533.5 | 1.82E-09 | |
| 1533.52 | 3.02E-09 | |
| 1533.54 | 3.78E-10 | |
| 1533.56 | 4.85E-09 | |
| 1533.58 | 3.16E-09 | |
| 1533.6 | 1.88E-09 | |
| 1533.62 | 5.10E-09 | |
| 1533.64 | 5.63E-09 | |
| 1533.66 | 5.20E-09 | |
| 1533.68 | 4.83E-09 | |
| 1533.7 | 4.34E-09 | |
| 1533.72 | -2.41E-09 | |
| 1533.74 | 2.15E-09 | |
| 1533.76 | 4.64E-11 | |
| 1533.78 | 1.96E-09 | |
| 1533.8 | 7.18E-10 | |
| 1533.82 | -2.59E-10 | |
| 1533.84 | 2.40E-09 | |
| 1533.86 | 2.14E-09 | |
| 1533.88 | 2.54E-09 | |
| 1533.9 | 1.02E-09 | |
| 1533.92 | -2.27E-09 | |
| 1533.94 | -4.55E-10 | |
| 1533.96 | -8.13E-10 | |
| 1533.98 | -7.76E-10 | |
| 1534 | 3.77E-09 | |
| 1534.02 | 2.58E-09 | |
| 1534.04 | 3.84E-09 | |
| 1534.06 | 1.83E-09 | |
| 1534.08 | 1.50E-09 | |
| 1534.1 | 4.32E-09 | |
| 1534.12 | 1.57E-09 | |
| 1534.14 | 3.32E-09 | |
| 1534.16 | 3.16E-09 | |
| 1534.18 | 1.93E-09 | |
| 1534.2 | 3.88E-09 | |
| 1534.22 | 6.59E-09 | |
| 1534.24 | -2.35E-09 | |
| 1534.26 | 1.14E-09 | |
| 1534.28 | -3.09E-09 | |
| 1534.3 | -1.54E-09 | |
| 1534.32 | 1.41E-11 | |
| 1534.34 | 1.72E-09 | |
| 1534.36 | 3.44E-09 | |
| 1534.38 | 5.96E-09 | |
| 1534.4 | 3.24E-09 | |
| 1534.42 | 9.38E-10 | |
| 1534.44 | 3.22E-09 | |
| 1534.46 | 5.25E-09 | |
| 1534.48 | 3.09E-09 | |
| 1534.5 | 6.23E-09 | |
| 1534.52 | 7.72E-09 | |
| 1534.54 | 1.12E-08 | |
| 1534.56 | 1.06E-08 | |
| 1534.58 | 1.14E-08 | |
| 1534.6 | 1.49E-08 | |
| 1534.62 | 1.14E-08 | |
| 1534.64 | 1.17E-08 | |
| 1534.66 | 7.77E-09 | |
| 1534.68 | 5.09E-09 | |
| 1534.7 | 8.64E-09 | |
| 1534.72 | 5.77E-09 | |
| 1534.74 | 3.78E-09 | |
| 1534.76 | 7.19E-09 | |
| 1534.78 | 4.41E-09 | |
| 1534.8 | 5.95E-10 | |
| 1534.82 | 6.36E-11 | |
| 1534.84 | 3.14E-10 | |
| 1534.86 | 2.49E-09 | |
| 1534.88 | 3.71E-09 | |
| 1534.9 | 2.35E-09 | |
| 1534.92 | -3.98E-09 | |
| 1534.94 | 5.60E-09 | |
| 1534.96 | 6.58E-10 | |
| 1534.98 | -1.95E-09 | |
| 1535 | 5.53E-09 | |
| 1535.02 | 1.50E-09 | |
| 1535.04 | 3.33E-09 | |
| 1535.06 | 1.07E-09 | |
| 1535.08 | 1.36E-09 | |
| 1535.1 | -1.35E-09 | |
| 1535.12 | 2.65E-09 | |
| 1535.14 | -5.53E-10 | |
| 1535.16 | 1.15E-09 | |
| 1535.18 | 2.98E-09 | |
| 1535.2 | 2.38E-09 | |
| 1535.22 | 6.13E-09 | |
| 1535.24 | 6.05E-10 | |
| 1535.26 | -2.14E-10 | |
| 1535.28 | 4.73E-09 | |
| 1535.3 | 1.35E-09 | |
| 1535.32 | 3.57E-09 | |
| 1535.34 | 9.62E-09 | |
| 1535.36 | 1.15E-08 | |
| 1535.38 | 1.19E-08 | |
| 1535.4 | 1.93E-08 | |
| 1535.42 | 2.29E-08 | |
| 1535.44 | 2.53E-08 | |
| 1535.46 | 2.21E-08 | |
| 1535.48 | 2.51E-08 | |
| 1535.5 | 2.17E-08 | |
| 1535.52 | 2.39E-08 | |
| 1535.54 | 1.71E-08 | |
| 1535.56 | 1.64E-08 | |
| 1535.58 | 1.49E-08 | |
| 1535.6 | 8.98E-09 | |
| 1535.62 | 7.48E-09 | |
| 1535.64 | 5.36E-09 | |
| 1535.66 | 8.55E-09 | |
| 1535.68 | 7.58E-09 | |
| 1535.7 | 6.78E-09 | |
| 1535.72 | 4.89E-09 | |
| 1535.74 | 4.13E-09 | |
| 1535.76 | 4.30E-10 | |
| 1535.78 | 4.67E-09 | |
| 1535.8 | -9.79E-10 | |
| 1535.82 | -5.72E-10 | |
| 1535.84 | 4.58E-09 | |
| 1535.86 | 6.58E-09 | |
| 1535.88 | 4.43E-09 | |
| 1535.9 | 8.36E-10 | |
| 1535.92 | 3.85E-09 | |
| 1535.94 | 2.44E-09 | |
| 1535.96 | 3.08E-09 | |
| 1535.98 | 3.25E-09 | |
| 1536 | -3.80E-10 | |
| 1536.02 | 2.18E-09 | |
| 1536.04 | -9.00E-10 | |
| 1536.06 | 4.56E-09 | |
| 1536.08 | 7.12E-09 | |
| 1536.1 | 4.95E-09 | |
| 1536.12 | 8.06E-09 | |
| 1536.14 | 6.54E-09 | |
| 1536.16 | 6.21E-09 | |
| 1536.18 | 7.65E-09 | |
| 1536.2 | 5.61E-09 | |
| 1536.22 | 5.96E-09 | |
| 1536.24 | 9.16E-09 | |
| 1536.26 | 4.97E-09 | |
| 1536.28 | 6.44E-09 | |
| 1536.3 | 8.01E-09 | |
| 1536.32 | 3.20E-09 | |
| 1536.34 | 5.20E-09 | |
| 1536.36 | 5.62E-09 | |
| 1536.38 | 4.27E-09 | |
| 1536.4 | 7.49E-09 | |
| 1536.42 | 1.14E-09 | |
| 1536.44 | 6.17E-09 | |
| 1536.46 | 1.43E-09 | |
| 1536.48 | 2.18E-09 |
訂購信息
型號: MP-TFF-OW-FA
OW: 1/2/3/4
1代表 1535-1545nm
2代表 1545-1555nm
3代表：1555-1565nm
4代表：1525-1535nm
例如：PN# MP-TFF-4-FA 10nm寬帶可調諧光纖光柵濾波器
參數：工作波長：1525nnm-1535nnm；調諧范圍：10nm；3dB帶寬：0.07nm；光纖接頭 FC/APC ；操作溫度 0-45℃
● 極窄的濾波帶寬 drop端3dB帶寬 0.17nm±0.02nm，out端3dB帶寬0.07nm±0.02nm
● 寬波長可調諧范圍：10nm
● 超高信噪比可達100dB
● 好的濾波響應
● 超低插損
● 接受客戶不同可選要求定制
● 光信號選擇與過濾
● 背景噪聲抑制
● 可調諧激光器等應用
型號: TFF-OW-FA
OW: 1/2/3
1代表 1535-1545nm
2代表 1545-1555nm
3代表：1555-1565nm
例如：PN# TFF-1-FA 10nm寬帶可調諧光纖光柵濾波器
參數：工作波長：1535nnm-1545nnm；調諧范圍：10nm；3dB帶寬：0.07nm；光纖接頭 FC/APC ；操作溫度 0-45℃
| 名稱 | 型號貨號 | 描述 | 參數 | 價格 |
|---|
營業執照
