Part No. (Model)型號(hào)

120-10058-0001

(ET-3500)

120-10068-0001

(ET-3500F)

120-10071-0001

(ET-4000)

120-10081-0001

(ET-4000F)

120-10105-0001

(ET-5000)

120-10104-0001

(ET-5000F)

120-10140-0001

(ET-3600)

120-10142-0001

(ET-3600F)

Detector Material 材料

InGaAs

InGaAs

GaAs

GaAs

InGaAs

InGaAs

InGaAs

InGaAs

Rise Time/Fall Time

<25 ps/<25 ps

<25 ps/<25 ps

<30 ps/<30 ps

<30 ps/<30 ps

28 ps/28 ps

28 ps/28 ps

16 ps/16 ps

16 ps/16 ps

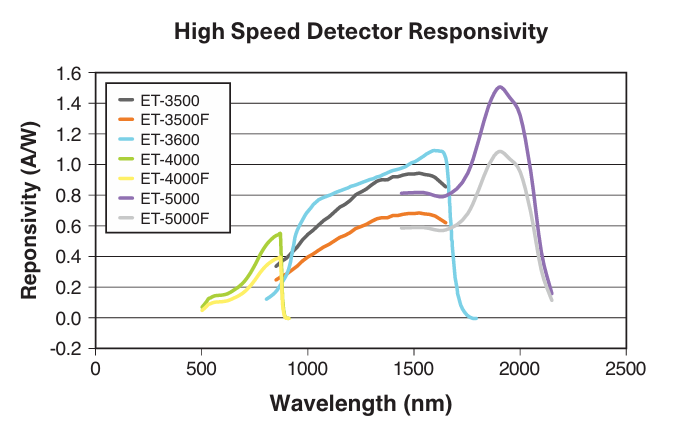

Responsivity^{a 響應(yīng)度}

>0.90 A/W

at 1300 nm

>0.65 A/W at

1300nm

0.53 A/W

at 830 nm

0.38 A/W

at 830 nm

1.3 A/W

at 2000 nm

0.95 A/W

at 2000 nm

>0.70 A/W

at 1300 nm

>0.70 A/W

at 1300 nm

Power Supply 電源

6 VDC

6 VDC

3 VDC

3 VDC

3 VDC

3 VDC

3 VDC

3 VDC

Bandwidth 波段

>15 GHz

>15 GHz

>12.5 GHz

>12.5 GHz

>10 GHz

>10 GHz

>22 GHz

>22 GHz

Active Area Diameter

有效面積直徑

32μm

32 μm

60 μm

60 μm

40 μm

40 μm

20 μm

20 μm

Dark Current 暗電流

<3 nA

<3 nA

<0.5 nA

<0.5 nA

<1 μA

<1 μA

<1 nA

<1 nA

Acceptance Angle

(1/2 angle) 接受角

15°

N/A

15°

N/A

20°

N/A

15°

N/A

Noise Equivalent

Power^b

噪聲等效功率

20 pW/√Hz

at 1300 nm

28 pW/√Hz

at 1300 nm

35 pW/√Hz

at 830 nm

45 pW/√Hz

at 830 nm

15 pW/√Hz

at 2000 nm

20 pW/√Hz

at 2000 nm

26 pW/√Hz

at 1300 nm

26 pW/√Hz

at 1300 nm

Maximum Linear

Rating CW Max. 線性額定值

10 mW

10 mW

10 mW

10 mW

3 mA

3 mA

10 mW

10 mW

Mounting (Tapped Holes)

安裝（螺紋孔）

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

Output Connector

輸出連接器

SMA

SMA

SMA

SMA

SMA

SMA

SMA

SMA

Fiber Optic Connection^c

^光纖連接

N/A

FC/UPC,

SMF28e

N/A

FC/UPC,

SMF28e

N/A

FC/UPC

N/A

FC/UPC,

SMF28e
